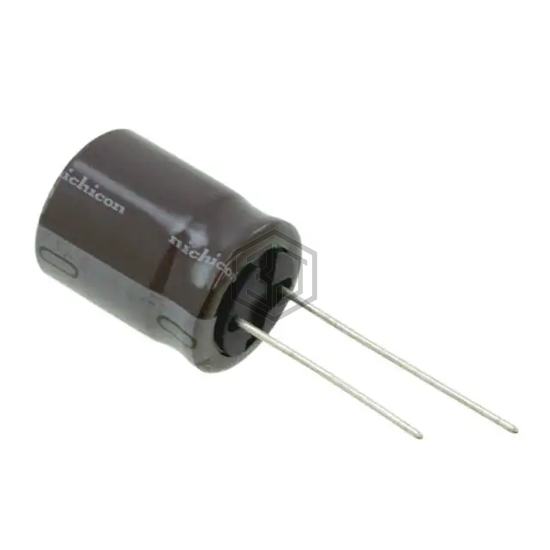

CAP ALUM 150UF 20% 160V RADIAL
UCS2C151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 6,037
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 945 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2C151MHD3 | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 100% | View |
| EKXJ161ELL151MJ40S | United Chemi-Con | CAP ALUM 150UF 20% 160V RADIAL | 86% | View |
| EKXJ201ELL151MM20S | United Chemi-Con | CAP ALUM 150UF 20% 200V RADIAL | 86% | View |
| UCS2E151MHD1TN | Nichicon | CAP ALUM 150UF 20% 250V RADIAL | 85% | View |
| MAL216353151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 250V SNAP | 81% | View |
| EKXJ351ELL151ML45S | United Chemi-Con | CAP ALUM 150UF 20% 350V RADIAL | 75% | View |
