CAP ALUM 33UF 20% 35V SMD

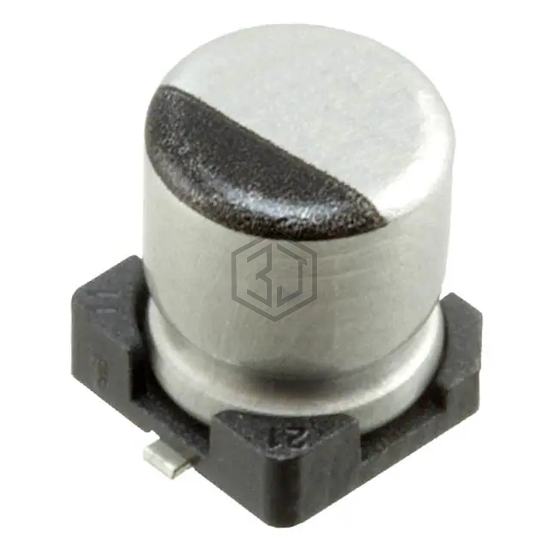

UCM1V330MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,869
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCD1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 100% | View |
| UCD1E330MCL1GS | Nichicon | CAP ALUM 33UF 20% 25V SMD | 91% | View |
| NACZ330M35V6.3X6.3TR13F | NIC Components Corp | CAP ALUM 33UF 20% 35V SMD | 88% | View |
| 35SGV33M8X6.5 | Rubycon | CAP ALUM 33UF 20% 35V SMD | 76% | View |
| AFK336M50E16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 50V SMD | 74% | View |
| EEE-FN1K330L | Panasonic Electronic Components | CAP ALUM 33UF 20% 80V SMD | 56% | View |
Submit your RFQ for UCM1V330MCL1GS and get a quote within 24 hours.
