CAP ALUM 33UF 20% 35V SMD

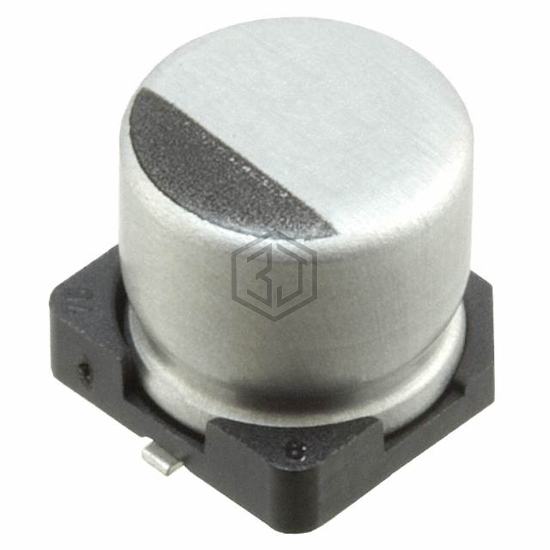

UCD1V330MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,205
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1V330MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEU330M1HTR-0810S | Surge | CAP ALUM 50V POLAR | 81% | View |
| RAVVD330M1UDE7002U | Taiyo Yuden | CAP ALUM 33UF 20% 50V SMD | 79% | View |
| EEE-FK1J330V | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V SMD | 70% | View |
| UUX2A330MNL1GS | Nichicon | CAP ALUM 33UF 20% 100V SMD | 64% | View |
| EEE-FN1K330L | Panasonic Electronic Components | CAP ALUM 33UF 20% 80V SMD | 56% | View |
| 16NSKV33M6.3X5.5 | Rubycon | CAP ALUM 33UF 20% 16V SMD | 56% | View |
