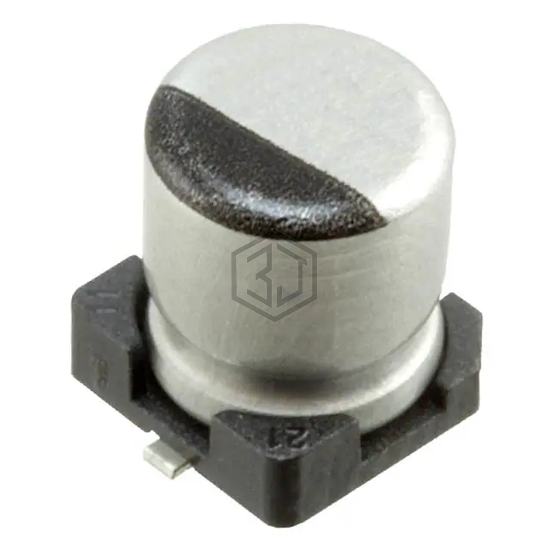

CAP ALUM 750UF 20% 80V SMD
UCM1K751MNJ1MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 750UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 7,152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 750 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.14 A @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TP1J751M | Panasonic Electronic Components | CAP ALUM 750UF 20% 63V SMD | 83% | View |
| EEE-TP1J751V | Panasonic Electronic Components | CAP ALUM 750UF 20% 63V SMD | 83% | View |
| UCM1H751MNJ1MS | Nichicon | CAP ALUM 750UF 20% 50V SMD | 81% | View |
| AFK687M63R44T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 63V SMD | 79% | View |
| EEE-TP1H751M | Panasonic Electronic Components | CAP ALUM 750UF 20% 50V SMD | 76% | View |
| EEE-TP1H751V | Panasonic Electronic Components | CAP ALUM 750UF 20% 50V SMD | 76% | View |
