Cornell Dubilier Electronics (CDE)

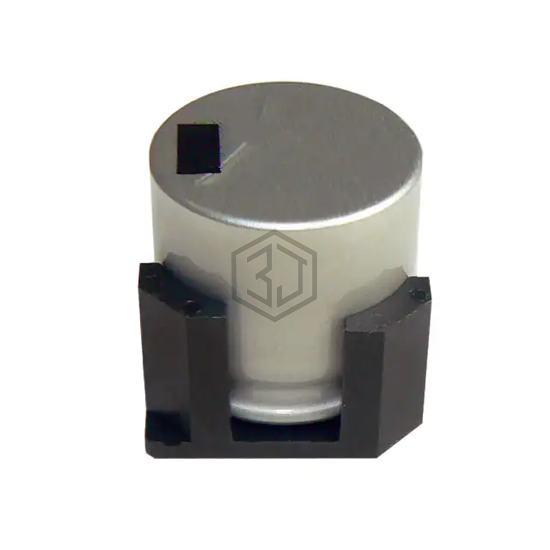

CAP ALUM 680UF 20% 63V SMD
AFK687M63R44T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 22,125
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 1.268 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.69 A @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.827" W (19.00mm x 21.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for AFK687M63R44T-F and get a quote within 24 hours.
