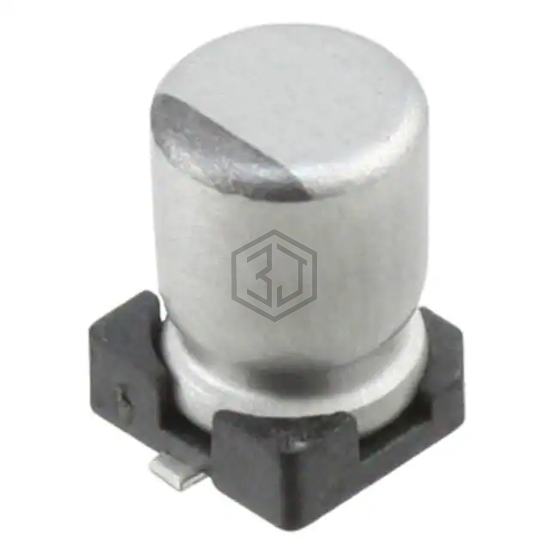

CAP ALUM 10UF 20% 35V SMD
UCL1V100MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,620
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 850 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 106AXZ035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 35V SMD | 96% | View |
| AVEZ106M35C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V SMD | 83% | View |
| UUX2A100MNL1GS | Nichicon | CAP ALUM 10UF 20% 100V SMD | 72% | View |
| EEV106M025A9BAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 64% | View |
| EEE-FK1C100AR | Panasonic Electronic Components | CAP ALUM 10UF 20% 16V SMD | 58% | View |
| 865080440002 | Würth Elektronik | CAP ALUM 10UF 20% 25V SMD | 57% | View |
