Cornell Dubilier Electronics (CDE)
CAP ALUM 10UF 20% 35V SMD

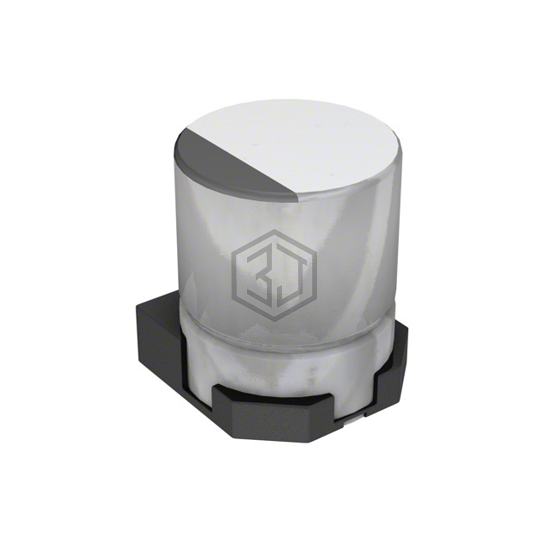

AVEZ106M35C12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 88 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCL1V100MCL6GS | Nichicon | CAP ALUM 10UF 20% 35V SMD | 83% | View |
| 106AXZ035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 35V SMD | 82% | View |
| 25SZV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 25V SMD | 78% | View |
| EEV106M025A9BAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 77% | View |
| UUX2A100MNL1GS | Nichicon | CAP ALUM 10UF 20% 100V SMD | 72% | View |
| 865080440002 | Würth Elektronik | CAP ALUM 10UF 20% 25V SMD | 70% | View |
