CAP ALUM 22UF 20% 63V SMD

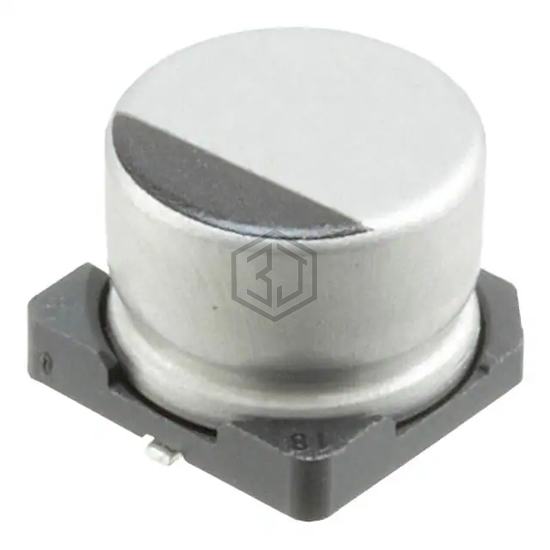

UCD1J220MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 1,728
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1J220MCL6GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MZA50VC22RMD61TP | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 79% | View |
| EEV226M010A9BAA | KEMET | CAP ALUM 22UF 20% 10V SMD | 69% | View |
| AFK226M50D16T | Cornell Dubilier Electronics (CDE) | AFK226M50D16T | 69% | View |
| 865080542006 | Würth Elektronik | CAP ALUM 22UF 20% 35V SMD | 67% | View |
| 16TZV22M5X6.1 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 66% | View |
| EXV226M050A9HAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 59% | View |
Submit your RFQ for UCD1J220MCL6GS and get a quote within 24 hours.
