CAP ALUM 22UF 20% 16V SMD

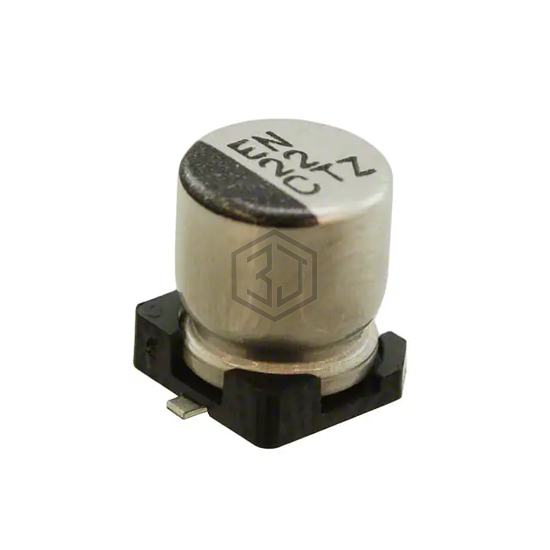

16TZV22M5X6.1 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 54.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 100 kHz |
| Impedance | 700 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZA160ARA220ME61G | Chemi-Con | CAP ALUM 22UF 20% 16V SMD | 95% | View |
| MZA35VC22RME61TP | United Chemi-Con | CAP ALUM 22UF 20% 35V SMD | 75% | View |
| EEE-FP1C220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V SMD | 67% | View |
| 35RZV22M6.3X5.5 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 66% | View |
| 865080542006 | Würth Elektronik | CAP ALUM 22UF 20% 35V SMD | 62% | View |
| AFK226M50D16T | Cornell Dubilier Electronics (CDE) | AFK226M50D16T | 61% | View |
Submit your RFQ for 16TZV22M5X6.1 and get a quote within 24 hours.
