CAP ALUM 22UF 20% 63V SMD

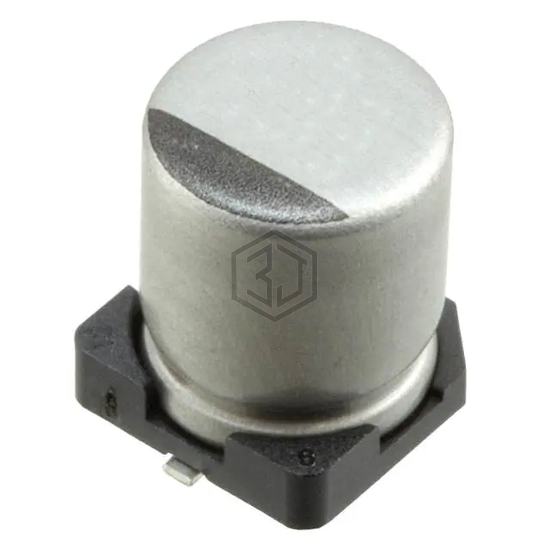

UCD1J220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 8,702
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1J220MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEK0608220M063R | KYOCERA AVX | CAP ALUM 63V POLAR | 89% | View |
| 226AXZ050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V SMD | 77% | View |
| AFK226M50D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 50V SMD | 69% | View |
| UWD1E220MCL1GS | Nichicon | CAP ALUM 22UF 20% 25V SMD | 67% | View |
| EEE-FK1V180SR | Panasonic Electronic Components | CAP ALUM 18UF 20% 35V SMD | 67% | View |
| EEE-FK1V220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 61% | View |
