Panasonic Electronic Components

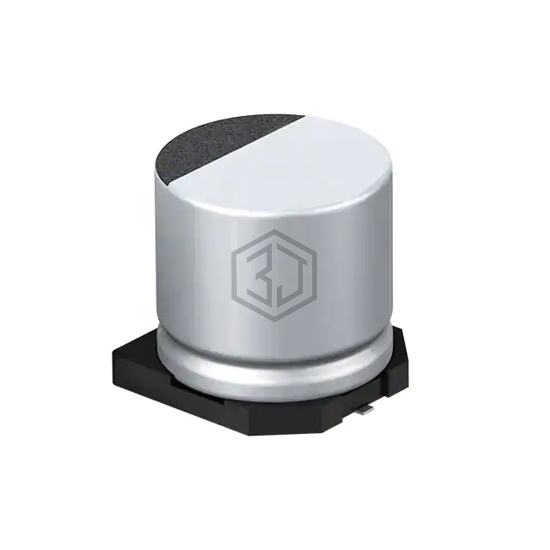

CAP ALUM 18UF 20% 35V SMD
EEE-FK1V180SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 18UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,962
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 1.35Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 58.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EEE-FK1V180SR and get a quote within 24 hours.
