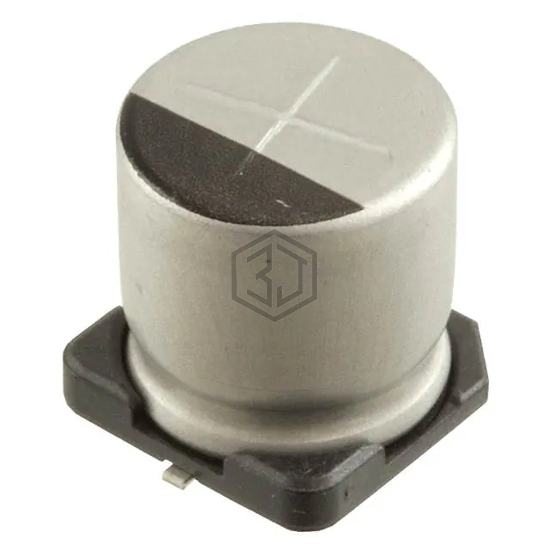

CAP ALUM 680UF 20% 25V SMD
UCD1E681MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 475 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCD1V681MNQ1ZD | Nichicon | CAP ALUM 680UF 20% 35V SMD | 83% | View |
| EEE-FK1C681V | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 80% | View |
| MAL216099808E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V SMD | 71% | View |
| EEE-FN1A681P | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V SMD | 65% | View |
| UWZ1C681MCL1GS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 59% | View |
| 10TZV680M8X10.5 | Rubycon | CAP ALUM 680UF 20% 10V SMD | 58% | View |
