Vishay Beyschlag/Draloric/BC Components

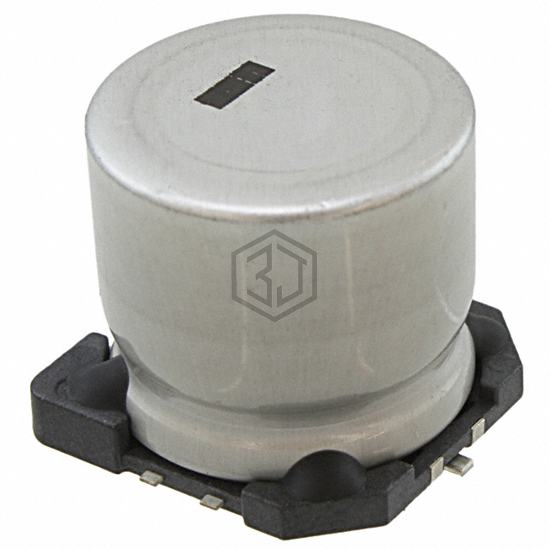

CAP ALUM 680UF 20% 63V SMD
MAL216099808E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 680UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 7,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 420 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 72 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBC1H681MNS1MS | Nichicon | CAP ALUM 680UF 20% 50V SMD | 72% | View |
| VUJ681M1HTR-1821S | Surge | CAP ALUM 50V POLAR | 72% | View |
| UBC1C681MNS1MS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 64% | View |
| VUJ681M1CTR-1313S | Surge | CAP ALUM 16V POLAR | 64% | View |
| VUJ681M1ETR-1616S | Surge | CAP ALUM 25V POLAR | 64% | View |
| MAL216099603E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V SMD | 58% | View |
Submit your RFQ for MAL216099808E3 and get a quote within 24 hours.
