CAP ALUM 10UF 20% 16V SMD

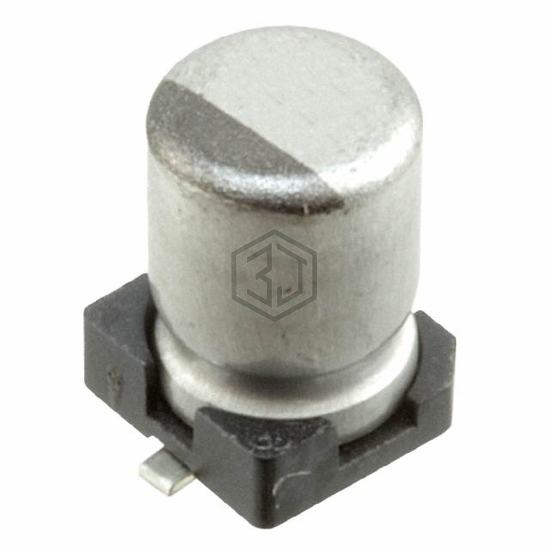

UCD1C100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,450
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCD1C100MCL1GS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVEZ106M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 16V SMD | 89% | View |
| EEE-FKV100UAR | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 76% | View |
| 35TZV10M4X6.1 | Rubycon | CAP ALUM 10UF 20% 35V SMD | 72% | View |
| MAL213966109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 25V SMD | 64% | View |
| UUP1C100MCL1GS | Nichicon | CAP ALUM 10UF 20% 16V SMD | 61% | View |
| EEE-FN2A100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 55% | View |
Submit your RFQ for UCD1C100MCL1GS and get a quote within 24 hours.
