CAP ALUM 10UF 20% 35V SMD

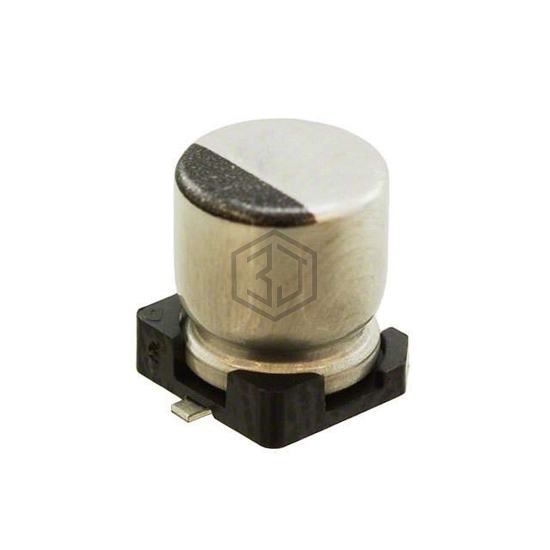

35TZV10M4X6.1 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,688
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 28.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.45 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FKV100UAR | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 84% | View |
| MVY25VC10RME55TP | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 84% | View |
| UUD1E100MCR1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 76% | View |
| UE106M063HEHTA | Aillen | CAP ALUM 10UF 20% 63V SMD | 76% | View |
| AVEK106M35C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V SMD | 74% | View |
| UUP1C100MCL1GS | Nichicon | CAP ALUM 10UF 20% 16V SMD | 51% | View |
Submit your RFQ for 35TZV10M4X6.1 and get a quote within 24 hours.
