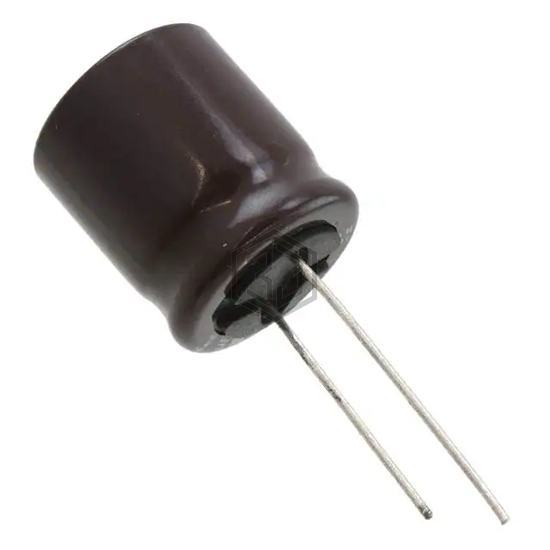

CAP ALUM 47UF 20% 350V RADIAL
UCA2V470MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 1,569
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UCA2V470MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKE00JG247XG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 400V RADIAL | 93% | View |
| EEU-EB2E470 | Panasonic Electronic Components | CAP ALUM 47UF 20% 250V RADIAL | 88% | View |
| 250BXC47MEFC10X25 | Rubycon | CAP ALUM 47UF 20% 250V RADIAL | 78% | View |
| EKZN800ELL470MHB5D | United Chemi-Con | CAP ALUM 47UF 20% 80V RADIAL | 64% | View |
| ECA-2EHG470B | Panasonic Electronic Components | CAP ALUM 47UF 20% 250V RADIAL | 59% | View |
| VHT47M10 | NTE Electronics, Inc | CAP ALUM 47UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for UCA2V470MHD6 and get a quote within 24 hours.
