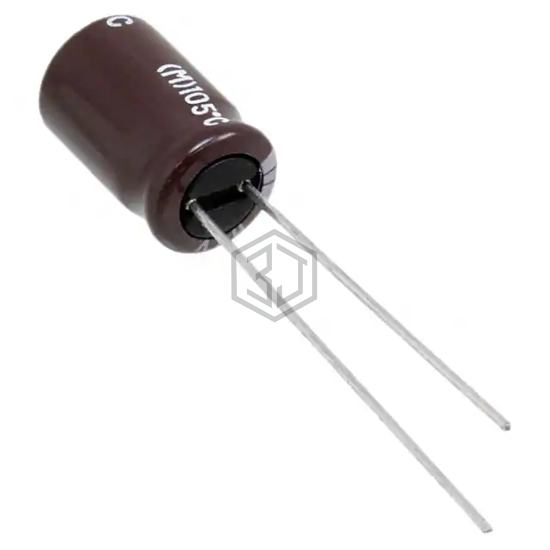

CAP ALUM 47UF 20% 80V RADIAL
EKZN800ELL470MHB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,175
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 248 mA @ 120 Hz |
| Ripple Current @ High Frequency | 620 mA @ 100 kHz |
| Impedance | 200 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00JG247O00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 350V RADIAL | 71% | View |
| AEC47M50V6R311 | Lumimax Optoelectronic Technology | CAP ALUM 47UF 20% 50V RADIAL TH | 70% | View |
| UVZ2V470MHH | Nichicon | CAP ALUM 47UF 20% 350V RADIAL | 68% | View |
| UVZ2G470MHH | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 68% | View |
| 63YXM47MEFR8X11.5 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 61% | View |
| VHT47M10 | NTE Electronics, Inc | CAP ALUM 47UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for EKZN800ELL470MHB5D and get a quote within 24 hours.
