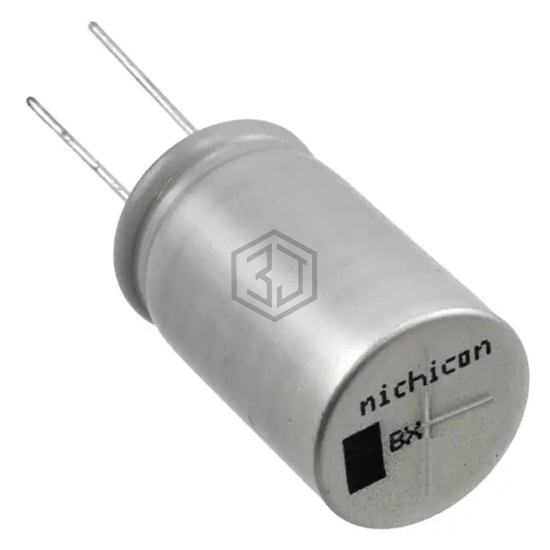

CAP ALUM 330UF 20% 100V RADIAL
UBX2A331MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,371
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 715 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.43 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1K331MHL | Nichicon | CAP ALUM 330UF 20% 80V RADIAL | 92% | View |
| UBX1J331MHL | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 76% | View |
| MAL216050331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 57% | View |
| MAL216055331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 56% | View |
| MAL216030331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
| MAL216056331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UBX2A331MHL and get a quote within 24 hours.
