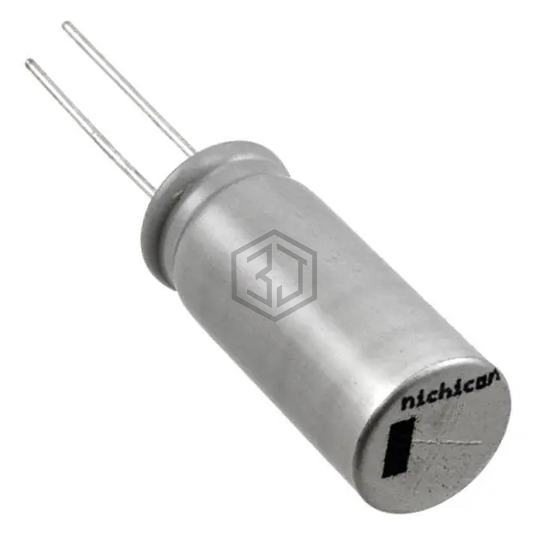

CAP ALUM 330UF 20% 63V RADIAL
UBX1J331MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 585 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.17 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1K331MHL | Nichicon | CAP ALUM 330UF 20% 80V RADIAL | 81% | View |
| UBX2A331MHL | Nichicon | CAP ALUM 330UF 20% 100V RADIAL | 76% | View |
| MAL216050331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 68% | View |
| UBX1V331MHL | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 64% | View |
| MAL216030331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 62% | View |
| MAL216051331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UBX1J331MHL and get a quote within 24 hours.
