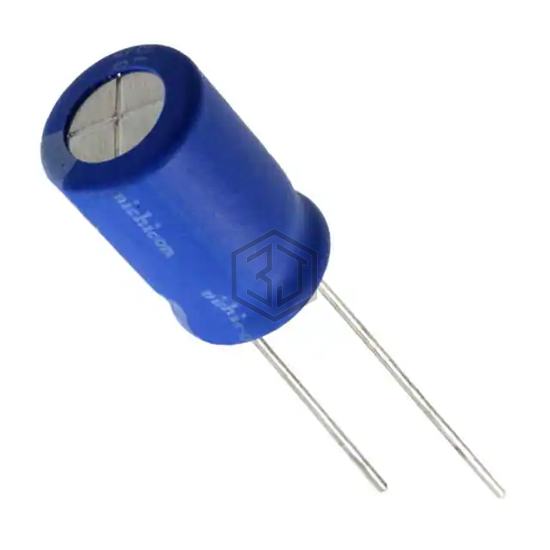

CAP ALUM 47UF 20% 100V RADIAL
UBW2A470MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,438
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 315 mA @ 120 Hz |
| Ripple Current @ High Frequency | 630 mA @ 100 kHz |
| Impedance | 550 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2A470MPL | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 99% | View |
| UBX1K470MPL1TD | Nichicon | CAP ALUM 47UF 20% 80V RADIAL | 87% | View |
| UBX1K560MPL1TD | Nichicon | CAP ALUM 56UF 20% 80V RADIAL | 82% | View |
| UBX1K560MPL | Nichicon | CAP ALUM 56UF 20% 80V RADIAL | 82% | View |
| UBW1J470MPD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 80% | View |
| UBW1J470MPD1TD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 80% | View |
