CAP ALUM 100UF 20% 80V RADIAL

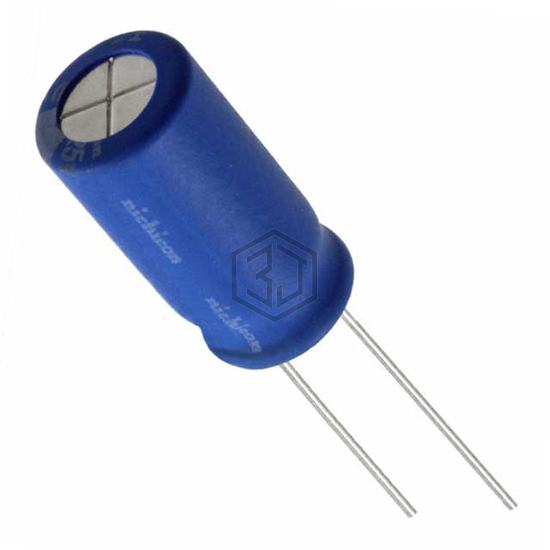

UBW1K101MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,390
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 395 mA @ 120 Hz |
| Ripple Current @ High Frequency | 790 mA @ 100 kHz |
| Impedance | 390 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1K101MPD1TD | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 100% | View |
| UBX1K101MHL1TO | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 98% | View |
| UBW1J101MPD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 88% | View |
| UBX2A101MHL1TO | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 84% | View |
| UBW2A101MHD | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 79% | View |
| UBW2A101MHD1TO | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 79% | View |
Submit your RFQ for UBW1K101MPD and get a quote within 24 hours.
