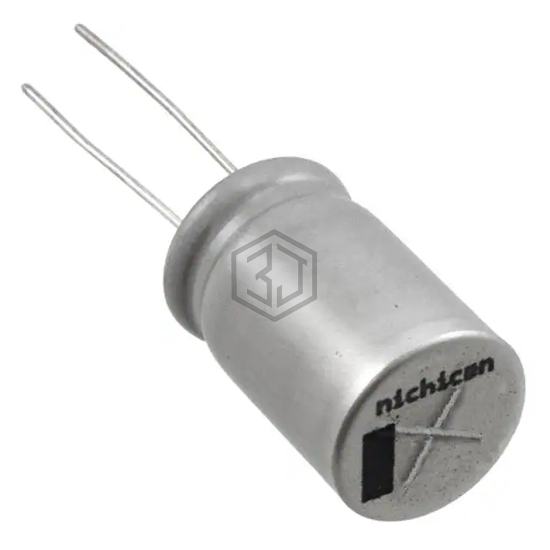

CAP ALUM 100UF 20% 80V RADIAL
UBX1K101MHL1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 2,166
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 410 mA @ 120 Hz |
| Ripple Current @ High Frequency | 820 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2A101MHL1TO | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 86% | View |
| UBX1J101MPL1TD | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 86% | View |
| UBX1J101MPL | Nichicon | CAP ALUM 100UF 20% 63V RADIAL | 85% | View |
| MAL216031101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 70% | View |
| MAL216066101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V RADIAL | 56% | View |
| MAL216060101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V RADIAL | 56% | View |
