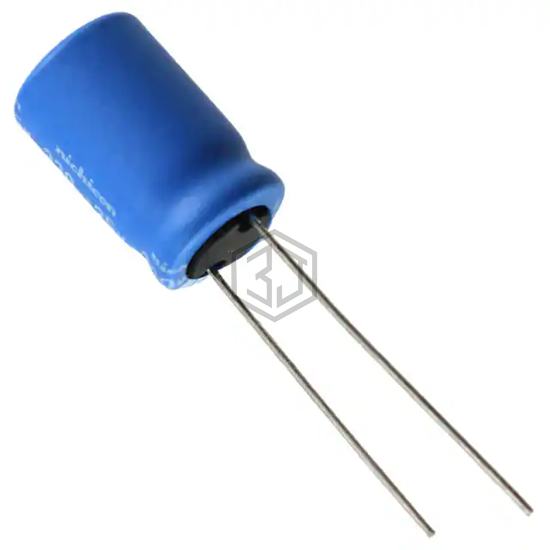

CAP ALUM 330UF 20% 25V RADIAL
UBT1E331MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 472.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 945 mA @ 100 kHz |
| Impedance | 75 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1V331MHL1TN | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 82% | View |
| 510DX337M025DG2D | Vishay Sprague | CAP ALUM 330UF 20% 25V RADIAL | 80% | View |
| MAL214055331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| EGXL160ELL331MJC5S | United Chemi-Con | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| UBX1H331MHL1TO | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 69% | View |
| UBX1H331MHL | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 69% | View |
Submit your RFQ for UBT1E331MPD1TD and get a quote within 24 hours.
