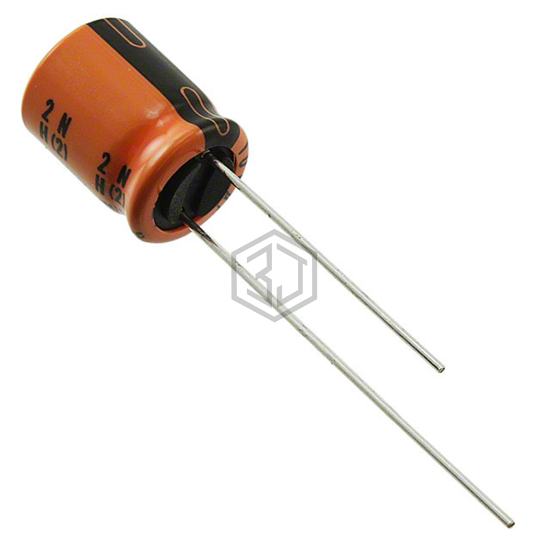

CAP ALUM 330UF 20% 16V RADIAL
EGXL160ELL331MJC5S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,576
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | 170 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214055331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 90% | View |
| UBX1V331MHL1TN | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 79% | View |
| UBX1H331MHL1TO | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 77% | View |
| UBX1H331MHL | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 77% | View |
| EGXE100ELL331MJC5S | United Chemi-Con | CAP ALUM 330UF 20% 10V RADIAL | 76% | View |
| 510DX337M025DG2D | Vishay Sprague | CAP ALUM 330UF 20% 25V RADIAL | 73% | View |
Submit your RFQ for EGXL160ELL331MJC5S and get a quote within 24 hours.
