CAP ALUM 220UF 20% 25V RADIAL

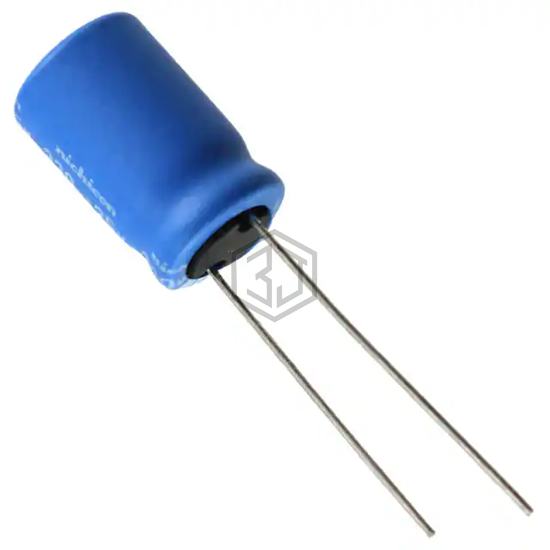

UBT1E221MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,870
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 680 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214056221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 82% | View |
| MAL214050221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 72% | View |
| RUA221M1CBK-1020S | SURGE | CAP ALUM 220UF 20% 16V RADIAL | 72% | View |
| 16RX30220MTA8X16 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 71% | View |
| 25RX30220M8X11.5 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 71% | View |
| 100RX30220M16X25 | Rubycon | CAP ALUM 220UF 20% 100V RADIAL | 52% | View |
Submit your RFQ for UBT1E221MPD and get a quote within 24 hours.
