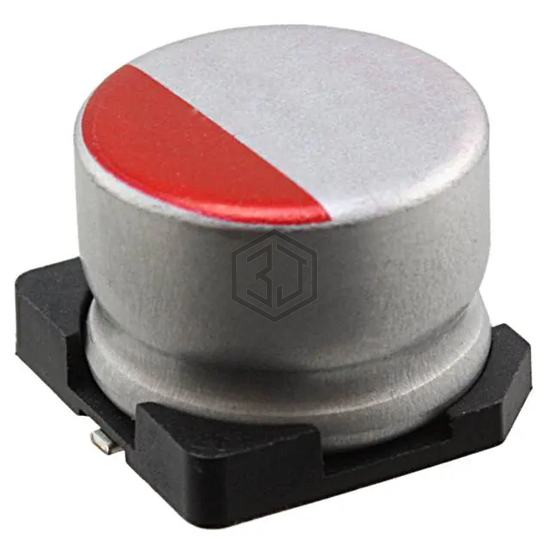

CAP ALUM POLY 22UF 20% 63V SMD
RPS1J220MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 6,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 33mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCV1J220MCL6GS | Nichicon | CAP ALUM POLY 22UF 20% 63V SMD | 96% | View |
| MAL218697104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 22UF 20% 50V SMD | 89% | View |
| A767MU226M2ALAE038 | KEMET | CAP ALUM POLY 22UF 20% 100V SMD | 69% | View |
| PCV1V220MCL2GS | Nichicon | CAP ALUM POLY 22UF 20% 35V SMD | 63% | View |
| MAL218497505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 22UF 20% 16V SMD | 62% | View |
| RFS1C220MCN1GS | Nichicon | CAP ALUM POLY 22UF 20% 16V SMD | 57% | View |
