CAP ALUM POLY 22UF 20% 16V SMD

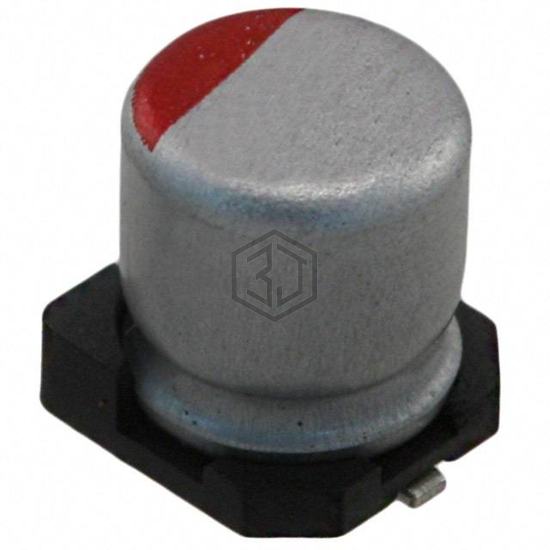

RFS1C220MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,523
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 121 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.21 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXA160ARA220ME60G | United Chemi-Con | CAP ALUM POLY 22UF 20% 16V SMD | 100% | View |
| 94SVP226X0020C6 | Vishay Sprague | CAP ALUM POLY 22UF 20% 20V SMD | 86% | View |
| PCV1V220MCL2GS | Nichicon | CAP ALUM POLY 22UF 20% 35V SMD | 69% | View |
| A767MU226M2ALAE038 | KEMET | CAP ALUM POLY 22UF 20% 100V SMD | 62% | View |
| A767EB226M1VLAE050 | KEMET | CAP ALUM POLY 22UF 20% 35V SMD | 62% | View |
| A767KN226M1HLAE050 | KEMET | CAP ALUM POLY 22UF 20% 50V SMD | 62% | View |
Submit your RFQ for RFS1C220MCN1GS and get a quote within 24 hours.
