CAP ALUM POLY 150UF 20% 4V SMD

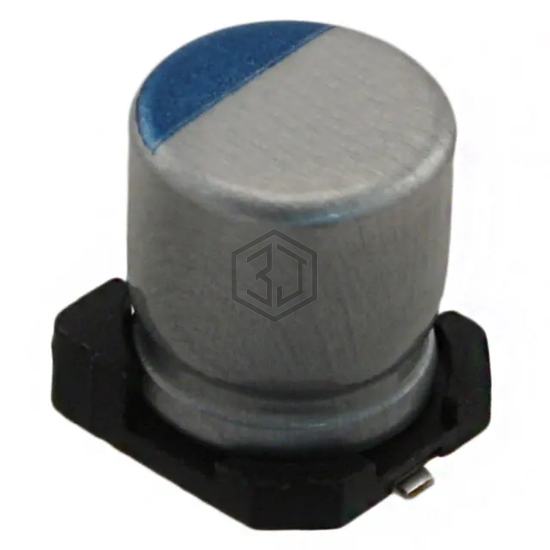

PCS0G151MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 150UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 9,870
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218197701E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 150UF 20% 4V SMD | 95% | View |
| 4SVPS150M | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 4V SMD | 95% | View |
| APXF6R3ARA151ME40G | United Chemi-Con | CAP ALUM POLY 150UF 20% 6.3V SMD | 75% | View |
| A765EB157M1ALAE022 | KEMET | CAP ALUM POLY 150UF 20% 10V SMD | 70% | View |
| RSL0J151MCN1GB | Nichicon | CAP ALUM POLY 150UF 20% 6.3V SMD | 69% | View |
| 94SVP157X0010E7 | Vishay Sprague | CAP ALUM POLY 150UF 20% 10V SMD | 67% | View |
Submit your RFQ for PCS0G151MCL1GS and get a quote within 24 hours.
