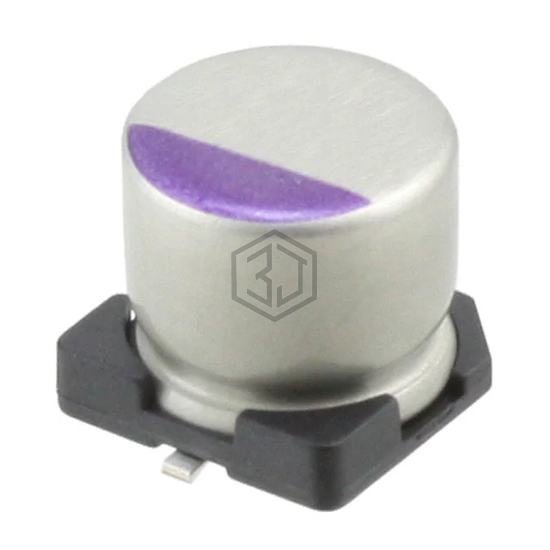

CAP ALUM POLY 150UF 20% 10V SMD
94SVP157X0010E7 is a Aluminum - Polymer Capacitors manufactured by Vishay Sprague. CAP ALUM POLY 150UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.56 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXF6R3ARA151ME40G | United Chemi-Con | CAP ALUM POLY 150UF 20% 6.3V SMD | 79% | View |
| MAL218697504E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 150UF 20% 16V SMD | 75% | View |
| APXH160ARA151MJ80G | United Chemi-Con | CAP ALUM POLY 150UF 20% 16V SMD | 75% | View |
| RSL0J151MCN1GB | Nichicon | CAP ALUM POLY 150UF 20% 6.3V SMD | 74% | View |
| PCJ1C151MCL1GS | Nichicon | CAP ALUM POLY 150UF 20% 16V SMD | 74% | View |
| 4SVPS150M | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 4V SMD | 71% | View |
Submit your RFQ for 94SVP157X0010E7 and get a quote within 24 hours.
