CAP ALUM POLY 68UF 20% 35V SMD

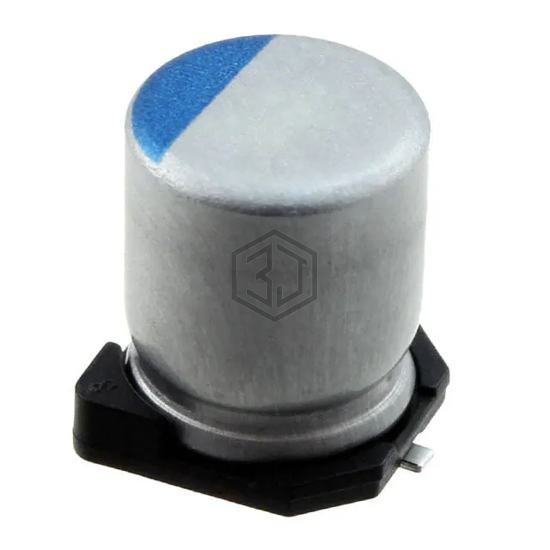

PCR1V680MCL4GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 68UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,468
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 31mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1V680MCL4GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A768KE686M1GLAE038 | KEMET | CAP ALUM POLY 68UF 20% 40V SMD | 91% | View |
| A768KE686M1GLAS038 | KEMET | CAP ALUM POLY 68UF 20% 40V SMD | 91% | View |
| 50SVPK68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V SMD | 78% | View |
| PCX1D680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 20V SMD | 76% | View |
| MAL218697552E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 68UF 20% 20V SMD | 64% | View |
| 63SXV68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 63V SMD | 64% | View |
