Vishay Beyschlag/Draloric/BC Components
CAP ALUM POLY 68UF 20% 20V SMD

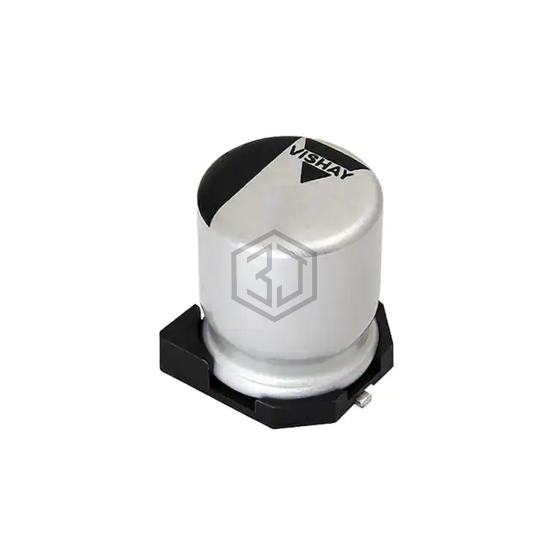

MAL218697552E3 is a Aluminum - Polymer Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM POLY 68UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 5,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCX1D680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 20V SMD | 86% | View |
| MAL218697401E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 56UF 20% 10V SMD | 72% | View |
| PCM1V680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 35V SMD | 71% | View |
| PCM1V680MCL4GS | Nichicon | CAP ALUM POLY 68UF 20% 35V SMD | 71% | View |
| APXH100ARA560MF61G | Chemi-Con | CAP ALUM POLY 56UF 20% 10V SMD | 71% | View |
| A768KE686M1GLAE038 | KEMET | CAP ALUM POLY 68UF 20% 40V SMD | 56% | View |
Submit your RFQ for MAL218697552E3 and get a quote within 24 hours.
