CAP ALUM POLY 1200UF 20% 10V SMD

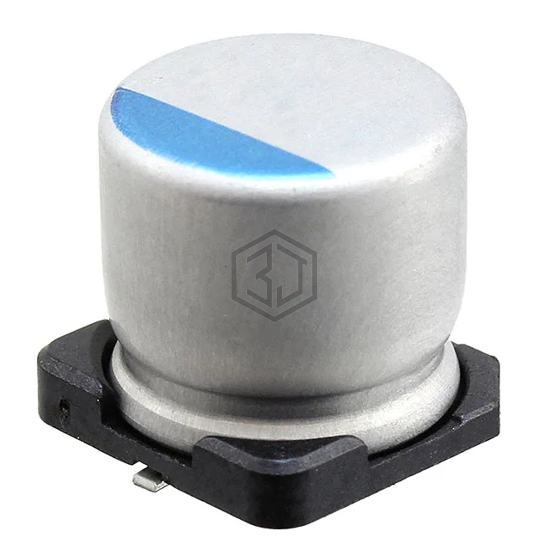

PCR1A122MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1200UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,723
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 17mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1A122MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCR1A102MCL1GS | Nichicon | CAP ALUM POLY 1000UF 20% 10V SMD | 87% | View |
| A768MS108M1CLAS015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 64% | View |
| A768MS108M1CLAE015 | KEMET | CAP ALUM POLY 1000UF 20% 16V SMD | 64% | View |
| MAL218697305E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 1000UF 6.3V SMD | 63% | View |
| APXH2R5ARA102MJ80G | United Chemi-Con | CAP ALUM POLY 1000UF 2.5V SMD | 59% | View |
| 16SVPK1200M | Panasonic Electronic Components | CAP ALUM POLY 1200UF 20% 16V SMD | 58% | View |
