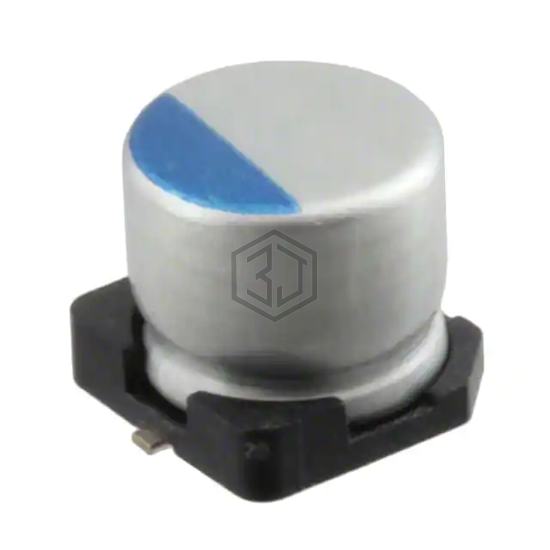

CAP ALUM POLY 100UF 20% 4V SMD
PCJ0G101MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 100UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 998
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.61 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCF0J101MCL6GS | Nichicon | CAP ALUM POLY 100UF 20% 6.3V SMD | 76% | View |
| APXS6R3ARA101ME61G | United Chemi-Con | CAP ALUM POLY 100UF 20% 6.3V SMD | 75% | View |
| MAL218697108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 100UF 20% 50V SMD | 69% | View |
| APA0606101M010R | KYOCERA AVX | CAP ALUM POLY 100UF 20% 10V SMD | 69% | View |
| 6SVP100M | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 6.3V SMD | 69% | View |
| APD0609101M035R | KYOCERA AVX | CAP ALUM POLY 100UF 20% 35V SMD | 66% | View |
Submit your RFQ for PCJ0G101MCL1GS and get a quote within 24 hours.
