Panasonic Electronic Components
CAP ALUM POLY 100UF 20% 6.3V SMD

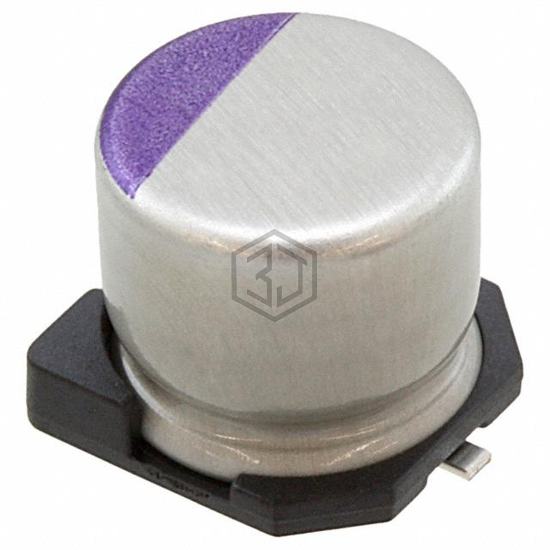

6SVP100M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 100UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 140
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 90.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.81 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCF0J101MCL6GS | Nichicon | CAP ALUM POLY 100UF 20% 6.3V SMD | 94% | View |
| APXS6R3ARA101ME61G | United Chemi-Con | CAP ALUM POLY 100UF 20% 6.3V SMD | 94% | View |
| PCF0J101MCL1GS | Nichicon | CAP ALUM POLY 100UF 20% 6.3V SMD | 86% | View |
| MAL218497406E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 100UF 20% 10V SMD | 81% | View |
| APA0606101M010R | KYOCERA AVX | CAP ALUM POLY 100UF 20% 10V SMD | 72% | View |
| APD0609101M035R | KYOCERA AVX | CAP ALUM POLY 100UF 20% 35V SMD | 70% | View |
Submit your RFQ for 6SVP100M and get a quote within 24 hours.
