CAP ALUM 220UF 20% 420V SNAP

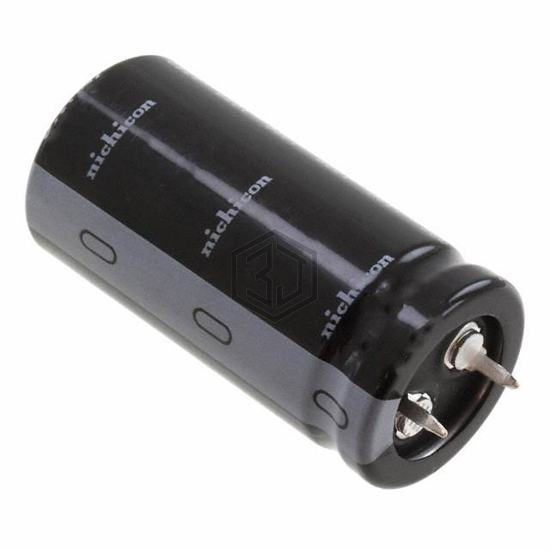

LQSW6221MELZ45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 7,728
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH08LU322S02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% SNAP | 100% | View |
| EKMQ451VND221MA25S | United Chemi-Con | CAP ALUM 220UF 20% 450V SNAP | 96% | View |
| 861141484013 | Würth Elektronik | CAP ALUM 220UF 20% 450V SNAP | 95% | View |
| B43505C5227M87 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 90% | View |
| LGL2G221MELA25 | Nichicon | CAP ALUM 220UF 20% 400V SNAP | 88% | View |
| EEU-FC1H221SB | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V RADIAL | 60% | View |
