Panasonic Electronic Components
CAP ALUM 220UF 20% 50V RADIAL

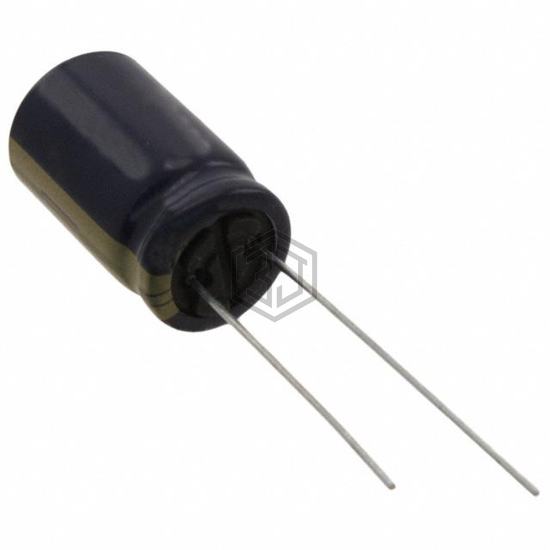

EEU-FC1H221SB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,601
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 747.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.15 A @ 100 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV101ETS221ML25S | United Chemi-Con | CAP ALUM 220UF 20% 100V RADIAL | 73% | View |
| MAL211918221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 63V AXIAL | 70% | View |
| ELXV101ETE221MK35S | United Chemi-Con | CAP ALUM 220UF 20% 100V RADIAL | 66% | View |
| ELXZ350ELL221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 66% | View |
| MAL211818221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V AXIAL | 62% | View |
| MAL216065221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 58% | View |
Submit your RFQ for EEU-FC1H221SB and get a quote within 24 hours.
