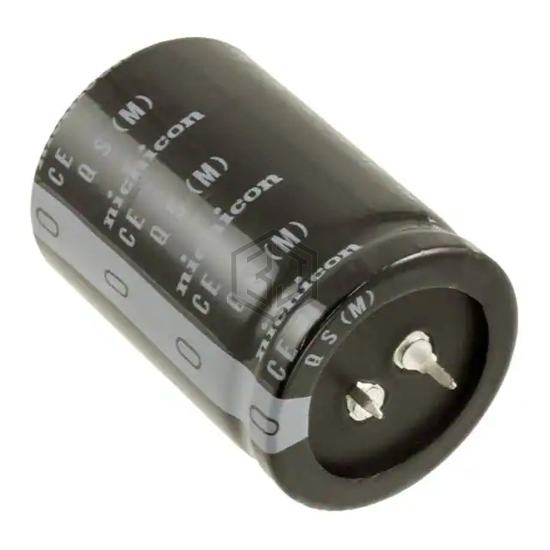

CAP ALUM 560UF 20% 450V SNAP
LQS2W561MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,991
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.99 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8457 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP561M385H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 385V SNAP | 95% | View |
| ELHS501VSN561MA60S | United Chemi-Con | CAP ALUM 560UF 20% 500V SNAP | 92% | View |
| 250MXC560MEFCSN22X50 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| SLP561M220A4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 220V SNAP | 72% | View |
| 200MXC560MEFCSN30X25 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 70% | View |
| 180MXG560MEFCSN25X25 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 69% | View |
Submit your RFQ for LQS2W561MELC50 and get a quote within 24 hours.
