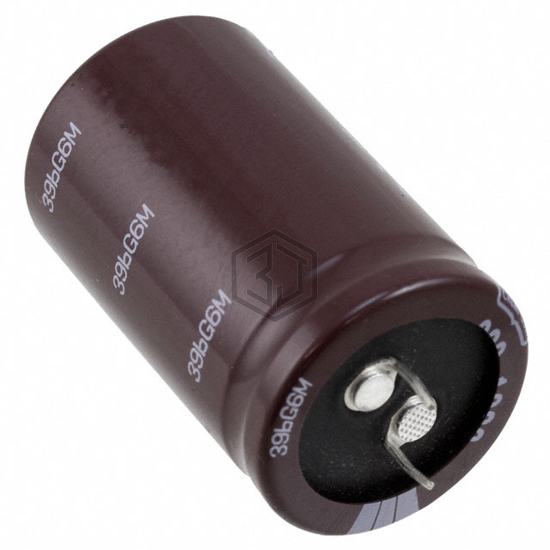

CAP ALUM 560UF 20% 500V SNAP
ELHS501VSN561MA60S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1603 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.461" (62.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALA8DA561DF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 85% | View |
| B43252E2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 73% | View |
| 250MXC560MEFCSN22X50 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 68% | View |
| B43252B2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 66% | View |
| 200MXC560MEFCSN30X25 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 65% | View |
| LGN2Z561MELZ30 | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 62% | View |
