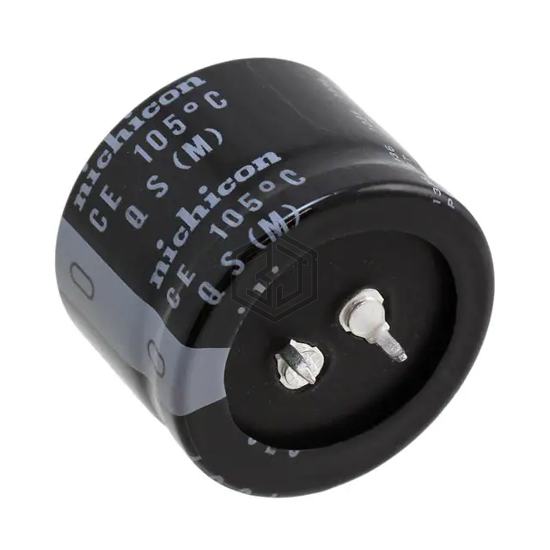

CAP ALUM 270UF 20% 400V SNAP
LQS2G271MELC25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.22 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.573 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGX2G271MELB30 | Nichicon | CAP ALUM 270UF 20% 400V SNAP | 96% | View |
| LGU2F271MELA | Nichicon | CAP ALUM 270UF 20% 315V SNAP | 90% | View |
| 381LX271M315H052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 315V SNAP | 89% | View |
| 450MXH270MEFC25X40 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 83% | View |
| 450VXH270MEFCSN25X45 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 81% | View |
| LGR2D271MELA25 | Nichicon | CAP ALUM 270UF 20% 200V SNAP | 75% | View |
Submit your RFQ for LQS2G271MELC25 and get a quote within 24 hours.
