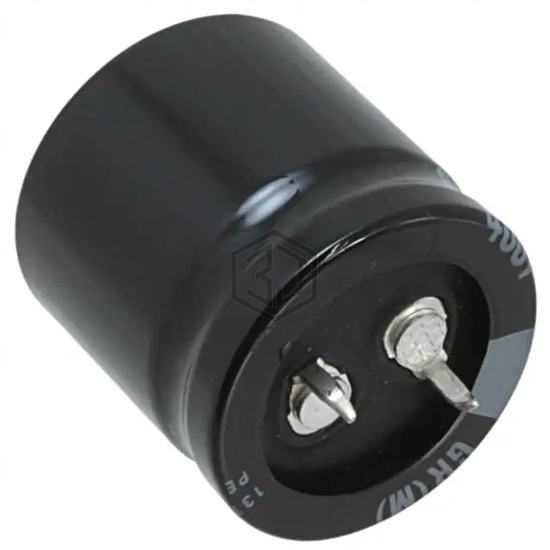

CAP ALUM 270UF 20% 200V SNAP
LGR2D271MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43254C2277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 200V SNAP | 97% | View |
| EPAG201ELL271ML30S | United Chemi-Con | CAP ALUM 270UF 20% 200V RADIAL | 93% | View |
| LGU2C271MELY | Nichicon | CAP ALUM 270UF 20% 160V SNAP | 93% | View |
| 381LX271M315H052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 315V SNAP | 84% | View |
| EKXJ251ELL271ML40S | United Chemi-Con | CAP ALUM 270UF 20% 250V RADIAL | 76% | View |
| EKMZ451VSN271MR25S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 73% | View |
Submit your RFQ for LGR2D271MELA25 and get a quote within 24 hours.
