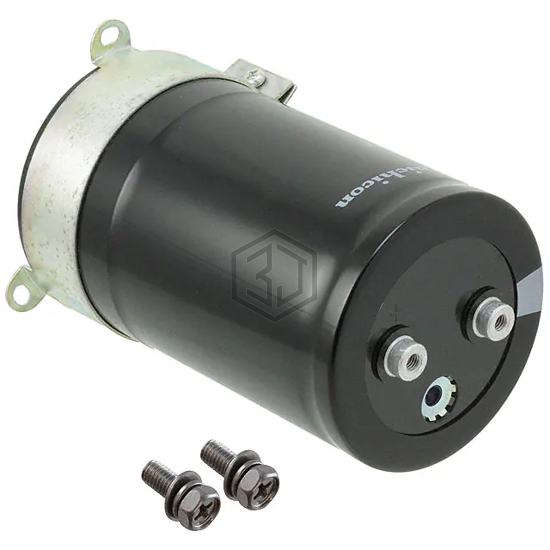

CAP ALUM 4700UF 20% 250V SCREW
LNT2E472MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 250V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,780
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.08 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.843" (123.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH161LGC472MCA0U | Chemi-Con | CAP ALUM 4.5MF 75V SCREW CHAS MT | 78% | View |
| E32D800LPC472MC48M | United Chemi-Con | CAP ALUM 4700UF 20% 80V SCREW | 77% | View |
| EKMH101LGB472MAA0U | Chemi-Con | CAP ALUM 4.2MF 75V SCREW CHAS MT | 71% | View |
| ALS40A472DF100 | KEMET | CAP ALUM 4700UF 20% 100V SCREW | 65% | View |
| LNT2A472MSE | Nichicon | CAP ALUM 4700UF 20% 100V SCREW | 57% | View |
| PEH169HA4470QU2 | KEMET | CAP ALUM 4700UF 25V SCREW | 56% | View |
Submit your RFQ for LNT2E472MSE and get a quote within 24 hours.
