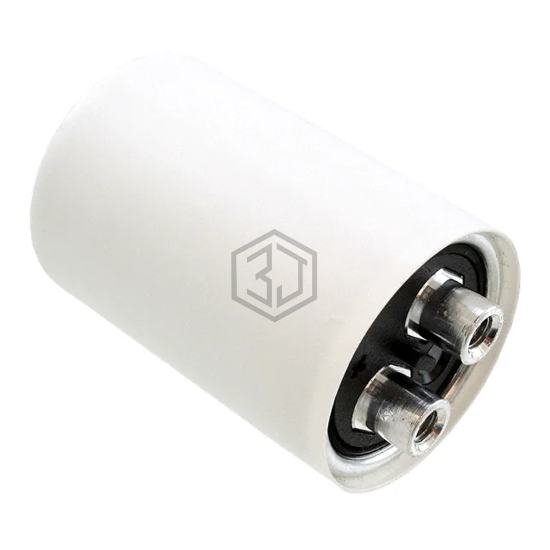

CAP ALUM 4700UF 25V SCREW
PEH169HA4470QU2 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 4700UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,987
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 41mOhm @ 100Hz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.512" (13.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2H472MSEH | Nichicon | CAP ALUM 4700UF 20% 500V SCREW | 56% | View |
| ALS40A472DF100 | KEMET | CAP ALUM 4700UF 20% 100V SCREW | 56% | View |
| LNT2A472MSE | Nichicon | CAP ALUM 4700UF 20% 100V SCREW | 56% | View |
| B43741B5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 56% | View |
| ETOR451CTN472MEE3U | Chemi-Con | CAP ALUM 4.7MF 20% 450V SCREW CH | 56% | View |
| EKMH101LGB472MAA0U | Chemi-Con | CAP ALUM 4.2MF 75V SCREW CHAS MT | 56% | View |
Submit your RFQ for PEH169HA4470QU2 and get a quote within 24 hours.
