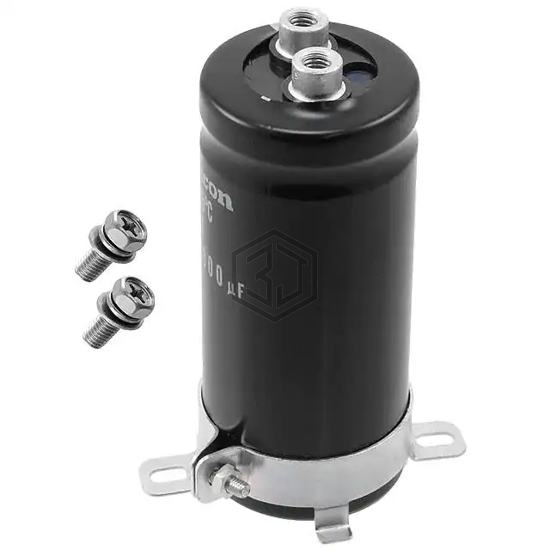

CAP ALUM 4700UF 20% 80V SCREW
LNT1K472MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,927
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.025 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 101472U075BC2B | Cornell Dubilier Knowles | CAP ALUM 75V POLAR | 96% | View |
| SWAA120472M100B | KYOCERA AVX | SERIES: SWA/ CASE: A12/ CAP: 047 | 92% | View |
| PEH169PJ4470QB2 | KEMET | CAP ALUM 4700UF 100V SCREW | 86% | View |
| 101472T100BF2B | Cornell Dubilier Knowles | CAP ALUM 100V POLAR | 86% | View |
| E32D800HPN472MA67U | United Chemi-Con | CAP ALUM 4700UF 20% 80V SCREW | 69% | View |
| PEH205KA4470QU0 | KEMET | CAP ALUM 4700UF 40V SCREW | 61% | View |
Submit your RFQ for LNT1K472MSE and get a quote within 24 hours.
