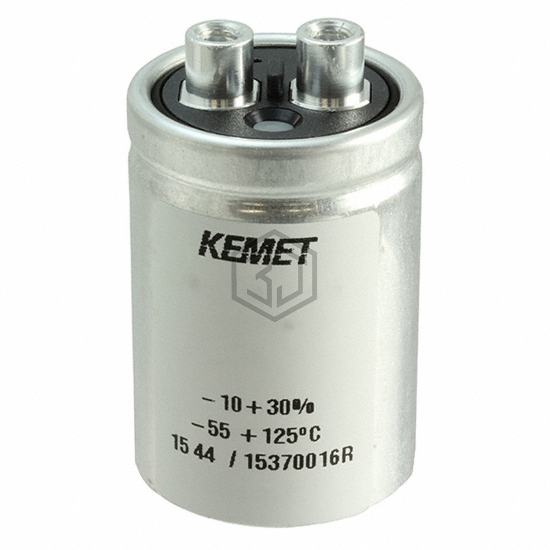

CAP ALUM 4700UF 40V SCREW
PEH205KA4470QU0 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 4700UF 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 32mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 0.512" (13.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 125472U030AH2A | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 30V SCREW | 82% | View |
| MLS442M040EK0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 4400UF 20% 40V FLATPACK | 72% | View |
| MLS442M040EK0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 4400UF 20% 40V FLATPACK | 72% | View |
| MLS442M040EK1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 4400UF 20% 40V FLATPACK | 72% | View |
| MLS442M040EK1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 4400UF 20% 40V FLATPACK | 72% | View |
| HVMLS442M040EK0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 4400UF 20% 40V FLATPACK | 72% | View |
Submit your RFQ for PEH205KA4470QU0 and get a quote within 24 hours.
