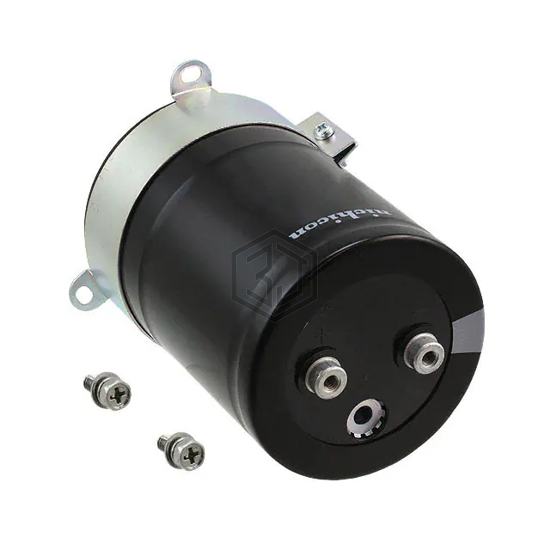

CAP ALUM 150000UF 20% 80V SCREW
LNT1K154MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.84 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 8.780" (223.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1J154MSE | Nichicon | CAP ALUM 150000UF 20% 63V SCREW | 91% | View |
| LNT1J154MSEN | Nichicon | CAP ALUM 150000UF 20% 63V SCREW | 86% | View |
| B41580A7150M000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 40V SCREW | 69% | View |
| B41560A5150M000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 25V SCREW | 66% | View |
| ALS41A154NP040 | KEMET | CAP ALUM 150000UF 20% 40V SCREW | 64% | View |
| E32D500HLN154MEA5U | United Chemi-Con | CAP ALUM 150000UF 20% 50V SCREW | 62% | View |
Submit your RFQ for LNT1K154MSE and get a quote within 24 hours.
