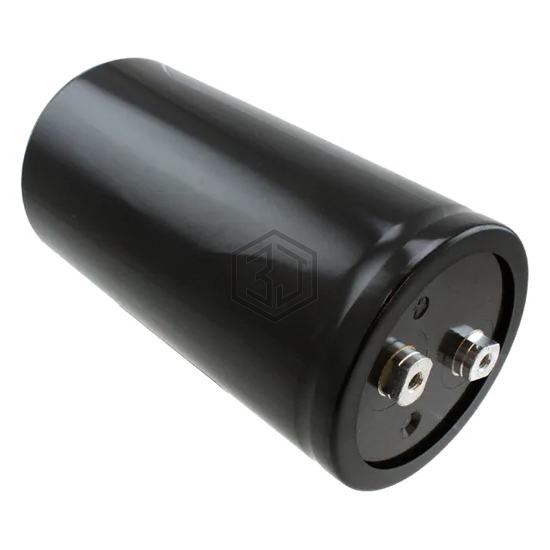

CAP ALUM 150000UF 20% 40V SCREW
ALS41A154NP040 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 150000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,946
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100Hz |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 31.3 A @ 100 Hz |
| Ripple Current @ High Frequency | 31.6 A @ 10 kHz |
| Impedance | 5 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 5.827" (148.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS40A154NP040 | KEMET | CAP ALUM SCRW TERM 105C | 100% | View |
| E32D500HLN154MEA5U | United Chemi-Con | CAP ALUM 150000UF 20% 50V SCREW | 84% | View |
| LNT1J154MSEN | Nichicon | CAP ALUM 150000UF 20% 63V SCREW | 77% | View |
| LNT1V154MSEB | Nichicon | CAP ALUM 150000UF 20% 35V SCREW | 71% | View |
| LNT1J154MSE | Nichicon | CAP ALUM 150000UF 20% 63V SCREW | 70% | View |
| LNT1E154MSEN | Nichicon | CAP ALUM 150000UF 20% 25V SCREW | 56% | View |
