CAP ALUM 22000UF 20% 50V SCREW

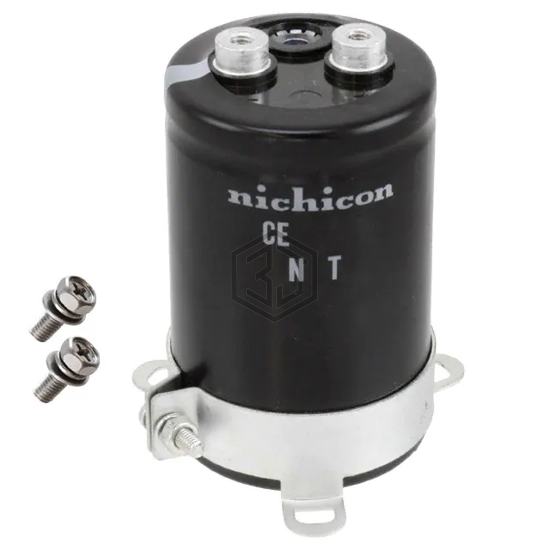

LNT1H223MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,430
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.245 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1J223MSE | Nichicon | CAP ALUM 22000UF 20% 63V SCREW | 89% | View |
| 101C223U040AC2B | Cornell Dubilier Knowles | CAP ALUM 40V POLAR | 86% | View |
| PEH169MT5220QB2 | KEMET | CAP ALUM 22000UF 63V SCREW | 85% | View |
| SWAC120223M080B | KYOCERA AVX | SERIES: SWA/ CASE: C12/ CAP: 022 | 74% | View |
| E32D350HPN223MA67U | Chemi-Con | CAP ALUM 22MF 20% 35V SCREW CHAS | 71% | View |
| B41554E4229Q000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 16V SCREW | 66% | View |
