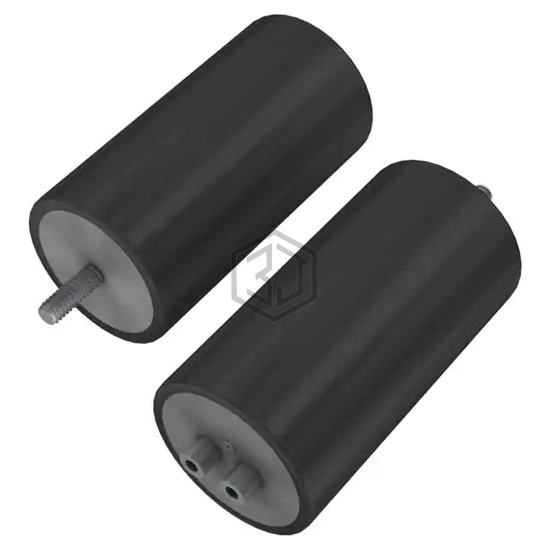

CAP ALUM 22000UF 63V SCREW
PEH169MT5220QB2 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 22000UF 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,277
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 6mOhm @ 100Hz |
| Lifetime @ Temp. | 13000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.260" (32.00mm) |
| Size / Dimension | 2.953" Dia (75.00mm) |
| Height - Seated (Max) | 4.173" (106.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1H223MSE | Nichicon | CAP ALUM 22000UF 20% 50V SCREW | 85% | View |
| ALS80A223NS250 | KEMET | CAP ALUM 22000UF 20% 250V SCREW | 56% | View |
| ALS80C223QM200 | KEMET | CAP ALUM 22000UF 20% 200V SCREW | 56% | View |
| ALS80G223NS250 | KEMET | CAP ALUM 22000UF 20% 250V SCREW | 56% | View |
| ALS81P223NS250 | KEMET | CAP ALUM 22000UF 20% 250V SCREW | 56% | View |
| ALS81G223NS250 | KEMET | CAP ALUM 22000UF 20% 250V SCREW | 56% | View |
Submit your RFQ for PEH169MT5220QB2 and get a quote within 24 hours.
