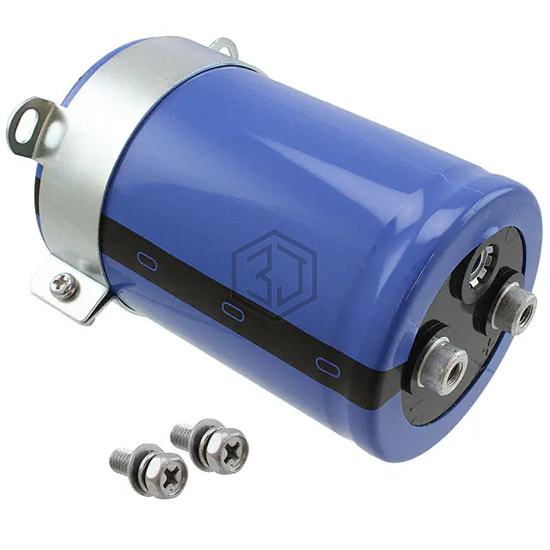

CAP ALUM 68000UF 20% 63V SCREW
LNR1J683MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,356
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.65 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63LSQ68000MNB64X119 | Rubycon | CAP ALUM 68000UF 20% 63V SCREW | 94% | View |
| LNR1K683MSEB | Nichicon | CAP ALUM 68000UF 20% 80V SCREW | 84% | View |
| ALS81H683QC063 | KEMET | CAP ALUM 68000UF 20% 63V SCREW | 83% | View |
| CGS683U050X4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 68000UF 50V SCREW | 83% | View |
| MAL210118683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 63V SCREW | 76% | View |
| MAL210147683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 40V SCREW | 75% | View |
Submit your RFQ for LNR1J683MSE and get a quote within 24 hours.
