Vishay Beyschlag/Draloric/BC Components

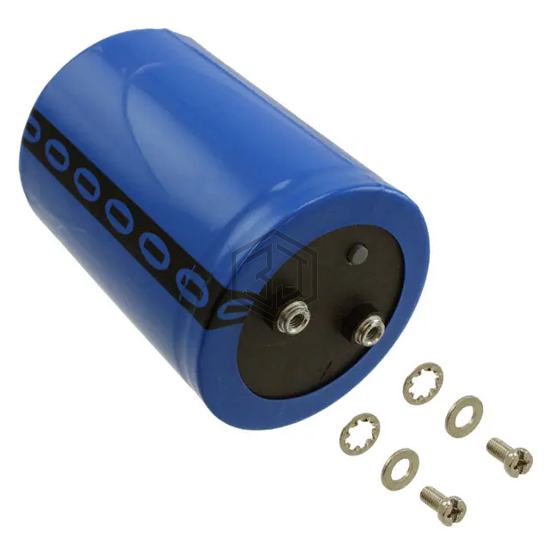

CAP ALUM 68000UF 20% 63V SCREW
MAL210118683E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 68000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 58
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 7mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 A @ 100 Hz |
| Ripple Current @ High Frequency | 26 A @ 10 kHz |
| Impedance | 6 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 2.992" Dia (76.00mm) |
| Height - Seated (Max) | 4.205" (106.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for MAL210118683E3 and get a quote within 24 hours.
